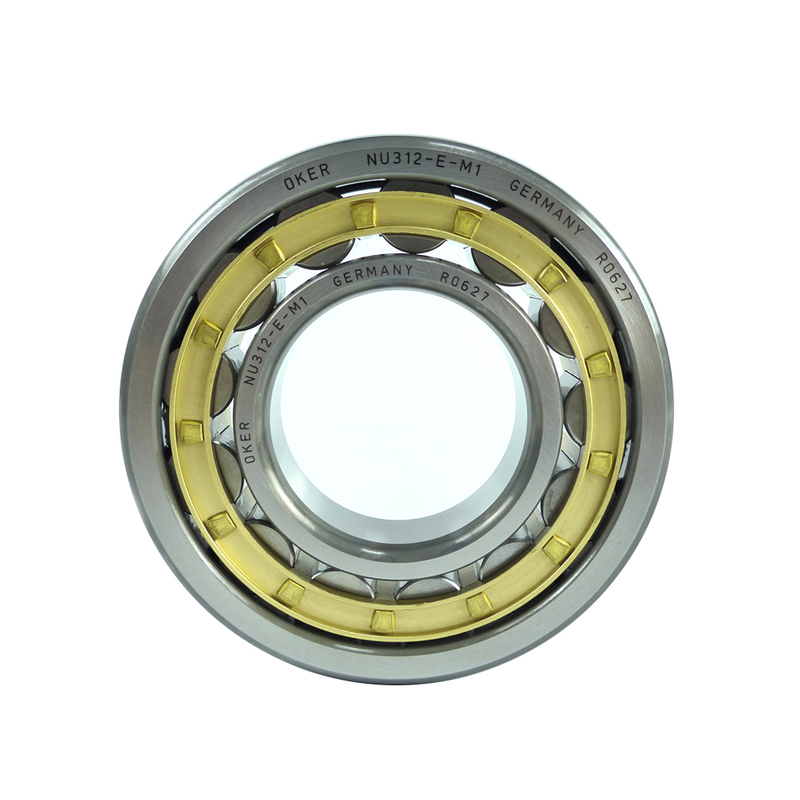

NU312-E-M1

+86-13921290555 okermikael@gmail.com

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

:
All

Product Name

Product Keyword

Product Model

Product Summary

Product Description

Multi Field Search
Home

About OKER

Quality Inspection System

Products

Deep Groove Ball Bearing

Spherical Surface Ball Bearing

Spherical Roller Bearing

Self-Aligning Ball Bearing

Cylindrical Roller Bearing

Tapered Roller Bearing

Angular Contact Ball Bearing

Thrust Ball Bearing

Needle Bearing

Articulated Bearing

High Temperature Series

Special Bearing

Agricultural Bearings

Automotive Bearings

Cam Followers

Combined Bearings

Inserts

Linear Bearings

Pillow Blocks

Rolling Mill Bearings

Slewing Ring Bearings

Thrust Cylindrical Roller Bearings

Track Roller Bearings

Water Pump Bearings

Sample Application

Service

Paper Machinery

Pellet Mill Machinery

Mining Machinery

Hoisting Machinery

Cement Machinery

Rolling Mill Machinery

Technical Support

Download

News

FAQ

Contact Us
+86-13921290555 okermikael@gmail.com

You are here: Home » Products » Cylindrical Roller Bearing » NU312-E-M1

OKRE Bearing No	Boundary Dimensions							Weight	Dynamic	Static
	d	D	T	B	C	R	r	W	Cr	Cor
	mm					min	min	kg	KN	KN
30202	15	35	11.75	11	10	0.6	0.6	0.053	15.8	14.4
30203	17	40	13.25	12	11	1	1	0.08	21.2	21.3
30204	20	47	15.25	14	12	1	1	0.126	28.2	30.6
30205	25	52	16.25	15	13	1	1	0.157	35.4	39.4
30206	30	62	17.25	16	14	1	1	0.231	45.4	50.5
30207	35	72	18.25	17	15	1.5	1.5	0.331	56.8	63.5
30208	40	80	19.75	18	16	1.5	1.5	0.422	63	74
30209	45	85	20.75	19	16	1.5	1.5	0.474	71.3	83.8
30210	50	90	21.75	20	17	1.5	1.5	0.53	73.3	92.1
30211	55	100	22.75	21	18	2	1.5	0.712	94.6	112.8
30212	60	110	23.75	22	19	2	1.5	0.904	103.3	130
30213	65	120	24.75	23	20	2	1.5	1.13	120.6	152.6
30214	70	125	26.25	24	21	2	1.5	1.261	138.3	173.7
30215	75	130	27.25	25	22	2	1.5	1.36	138.4	185.4
30216	80	140	28.25	26	22	2.5	2	1.675	167.7	212.9
30217	85	150	30.5	28	24	0.6	0.3	2.06	177.6	236.8
30302	15	42	14.25	13	11	1	1	0.095	23.9	21.6
30303	17	47	15.25	14	12	1	1	0.13	29.7	27.2
30304	20	52	16.25	15	13	1.5	1.5	0.17	34.7	33.2
30305	25	62	18.25	17	15	1.5	1.5	0.26	49.2	48.1
30306	30	72	20.75	19	16	1.5	1.5	0.387	61.7	63.1
30307	35	80	22.75	21	18	2	1.5	0.52	78.8	82.6
30308	40	90	25.25	23	20	2	1.5	0.745	95.2	107.5
30309	45	100	27.25	25	22	2	1.5	0.983	114.05	129.8
30310	50	110	29.25	27	23	2.5	2	1.256	130.1	157.1
30311	55	12	31.5	29	25	2.5	2	1.53	153.3	187.6
30312	60	130	33.5	31	26	3	2.5	1.99	171.4	210
30314	70	150	38	35	30	3	2.5	2.98	219	271.7
31306	30	72	20.75	19	14	1.5	1.5	0.392	52.5	60.3
31307	35	80	22.75	21	15	2	1.5	0.517	67.9	76.3
31308	40	90	25.25	23	17	2	1.5	0.727	81.4	96.4
31309	45	100	27.25	25	18	2	1.5	0.944	95.6	113.8
31313	65	140	35	33	23	3	2.5	2.37	165.7	202.6
32004X	20	42	15	15	12	0.6	0.6	0.098	26.3	30
32005X	25	47	15	15	11.5	0.6	0.6	0.112	28	34.1
32006X	30	55	17	17	13	1	1	0.174	38.9	48.9
32007X	35	62	18	18	14	1	1	0.22	42	56
32008X	40	68	19	19	14.5	1	1	0.27	47	67.3
32009X	45	75	20	20	15.5	1	1	0.34	59.6	80.1
32010X	50	80	20	20	15.5	1	1	0.368	63	88
32011X	55	90	23	23	17.5	1.5	1.5	0.552	79.7	115.6
32012X	60	95	23	23	17.5	1.5	1.5	0.578	83.8	121.5
32013X	65	100	23	23	17.5	1.5	1.5	0.62	82.8	127.3
32014X	70	110	25	25	19	1.5	1.5	0.841	101.7	158
32015X	75	115	25	25	19	1.5	1.5	0.872	103.1	160.2
32016X	80	125	29	29	22	1.5	1.5	1.252	141	220
32017X	85	130	29	29	22	1.5	1.5	1.318	139.8	220.3
32204	20	47	19.25	18	15	1	1	0.161	37	40.6
32205	25	52	19.25	18	16	1	1	0.184	43	48
32206	30	62	21.25	20	17	1	1	0.286	54.34	63.7
32207	35	72	24.25	23	19	1.5	1.5	0.446	74	89.5
32208	40	80	24.75	23	19	1.5	1.5	0.532	77.9	97.2
32209	45	85	24.75	23	19	1.5	1.5	0.58	84.1	103
32210	50	90	24.75	23	19	1.5	1.5	0.625	86.7	107.6
32211	55	100	26.75	25	21	2	1.5	0.854	112.7	141.5
32212	60	110	29.75	28	24	2	2	1.168	132.8	179.6
32213	65	120	32.75	31	27	2	1.5	1.55	160.9	221.7
32214	70	125	33.25	31	27	2	1.5	1.641	173.1	237.1
32216	80	140	35.25	33	28	2.5	2	2.132	198.1	279
32217	85	150	38.5	36	30	2.5	2	2.68	226.7	324
32219	95	170	45.5	43	37	3	2.5	4.24	302.5	448.4
32304	20	52	22.25	21	18	1.5	1.5	0.23	44.6	46.3
32305	25	62	25.25	24	20	1.5	1.5	0.369	64.6	68.8
32306	30	72	28.75	27	23	1.5	1.5	0.565	85.5	96.4
32307	35	80	32.75	31	25	2	1.5	0.764	103.6	118.3
32308	40	90	35.25	33	27	2	1.5	1.044	120.8	147.1
32309	45	100	38.25	36	30	2	1.5	1.403	152.2	189.3
32310	50	110	42.25	40	33	2.5	2	1.89	177.5	236.1
32311	55	120	45.5	43	35	2.5	2	2.363	212.7	271.3
32312	60	130	48.5	46	37	3	2.5	2.9	226.7	303
32313	65	140	51	48	39	3	2.5	3.514	269.3	349.8
32907	35	55	14	14	11.5	0.6	0.6	0.119	25.4	34.2
32908	40	62	15	15	12	0.6	0.6	0.158	31.6	46.1
32912	60	85	17	17	14	1	1	0.282	45.3	70.9
33005	25	47	17	17	14	0.6	0.6	0.131	32.5	42.5
33012	60	95	27	26	21	1.5	1.5	0.666	79.7	116.4
33013	65	100	27	27	21	1.5	1.5	0.74	100.9	163.6
33016	80	125	36	36	29.5	1.5	1.5	1.615	175.8	293.1
33019	95	145	39	39	32.5	2	2	2.26	231	389.9
33021	105	160	43	43	34	2.5	2	2.98	257	437
33108	40	75	26	26	20.5	1.5	1.5	0.484	78	98.4
33109	45	80	26	26	20.5	1.5	1.5	0.536	87.1	117.2
33110	50	85	26	26	20	1.5	1.5	0.595	89.5	124.7
33113	65	110	34	34	26.5	1.5	1.5	1.3	142.8	220.4
33116	80	130	37	37	29	2	1.5	1.864	180	292
33118	90	150	45	45	35	2.5	2	3.13	252.1	414.7
33205	25	52	22	22	18	1	1	0.215	47.1	55.8
33206	30	62	25	25	19.5	1	1	0.343	63.8	75.4
33207	35	72	28	28	22	1.5	1.5	0.51	82.6	101.7
33212	60	110	38	38	29	2	1.5	1.51	165.8	231.4
33213	65	120	41	41	32	2	1.5	1.99	202.2	281.6
320/22XF	22	44	15	15	11.5	1	1	0.102	26.1	30.3
320/28X	28	52	16	16	12	1	1	0.144	31.4	40.4
320/28XF	28	52	16	16	12	1.5	1.5	0.144	31.4	40.4
320/32XF	32	58	17	17	13	1	1	0.188	38.6	49.2
320/32XR	32	58	17	17	13	3.2	1	0.188	38.6	49.2
35KC802	35	80	29.15	28.5	22	2	2	0.7107	91.2	109
50KB801	50	80	22	20	17.5	3.5	1.5	0.395	61	89
50KB8301	50	83	24	20.5	19	4	1.3	0.46	68.6	90.5
T5FC030	30	72	24	23	16.5	0.5	1.5	0.449	56.3	61.3
T5GD035	35	89	38	38	27.5	1	1.5	1.203	112.2	148.3
T2CC050	50	83	20.5	20.5	15.5	3.5	1	0.396	68.6	87
T2CC050/T2CC050J	50	83	20.5	20.5	15.5	3.5	1	0.396	68.6	87
S-479505	75	140	34.25	32	28	0.5	2	2.255	208.9	282.5
T3DD080	80	130	35	34	28.5	3.6	2.5	1.707	160	250.2
T4DC090	90	145	35	34	27	6.5	3.2	2.085	180.5	293.1
32004XR	20	42	15	15	12	2	0.6	0.098	26.3	30
32004XRZ	20	42	15	15	12	2	1	0.098	26.3	30
XAA32004X/YAA32004	20	42	15	15	12	2	1	0.098	26.3	30
32005XR	25	47	15	15	11.5	SP	0.6	0.112	28	34.1
32005XRZ	25	47	15	15	11.5	SP	1	0.112	28	34.1
32005XR/26	26	47	15	15	11.5	SP	0.6	0.112	28	34.1
xAA32005X/YAA32005X	25	47	15	15	11.5	3.3	1	0.112	28	34.1
32007X30/32007X	30	62	18	18	14	1.5	1.5	0.25	42	56
32007X34/32007XF	34	62	18	18	14	1.5	1.5	0.231	42	56
32007XRZ	35	62	18	18	14	SP	1.5	0.221	42	56
NP316592/32007X	35	62	18	18	14	3	1	0.221	42	56
32008X1WC	40	72	19	19	14.5	1	1	0.328	52	73
XAA32008X	40	68	19	19	14.5	3.5	1	0.27	47	67.3
JXC18437CA/32008XZ	41	68	19	21	14.5	2	1	0.27	47	67.3
XAA32009X/32009X	45	75	20	20	15.5	3	1	0.339	59.6	80.1
32010XR	50	80	20	20	15.5	3	1	0.368	63	88
XAA32010X/Y32010XZ	50	80	20	20	15.5	2.3	1	0.368	63	88
AB-32010X/32010X	50	80	20	20	15.5	3	1	0.368	60	88
32010XZ/Y32010XZ	50	80	20	20	15.5	1	1	0.368	63	88
JXC25678CAIY32011XZ	55	90	23	23	17.5	3	1.5	0.55	79.7	115.6
515979/30206A	30	62	17.25	16	14	SP	1	0.226	45.4	50.5
30207/80F	35	80	18.25	17	15	1.5	1.5	0.443	56.8	63.5
30207/37F	37	72	18.25	17	15	2	2	0.315	56.8	63.5
L30208	40	85	7.75	18	16	1.5	2	0.432	63	74
L30210	50	95	8.75	20	17	1.5	2	0.539	73.3	92.1
303/28F	28	68	19.75	18	16	1.5	1.5	0.331	53.1	52.4
30304C	20	52	16.25	16	12	1.5	1.5	0.166	33.1	31.6
30306C	30	72	20.75	19	14	1.5	1.5	0.378	57.7	56.7
H30306C	30	72	20.65	19	16	0.3	1.5	0.388	57.7	56.7
30309X2B	45	100	31.85	29	20.5	2.5	2.5	1.036	102.2	112.5
32204R	20	47	19.25	18	15	0.3	0.3	0.161	37	40.6
32205B	25	52	19.25	18	15	1	1	0.195	39	47.8
32306C	30	72	28.75	27	23	2	2	0.589	70.7	89.9
32306-KL	30	72	28.75	27	23	1.5	1.5	0.565	85.5	96.4
32307BC	35	80	32.75	31	25	2	1.5	0.808	96.4	122.4
32308F/32308	38	90	35.25	33	27	2.5	2	1.075	120.8	147.1
32308B	40	90	35.25	33	27	2	1.5	1.124	110.2	141.5
32308C	40	90	35.25	33	26	2	1.5	1.069	110.2	141.5
32308-KL	40	90	35.25	33	27	2	1.5	1.044	120.8	147.1
XAA33108/Y33108Z	40	75	26	26	20.5	3.5	1.5	0.484	78	98.4
33113X2	65	110	30.5	30	24	3	3	1.114	125.7	184.8

OKRE Bearing No	Boundary Dimensions							Weight	Dynamic	Static
	d	D	T	B	C	R	r	W	Cr	Cor
	mm					min	min	kg	KN	KN
30202	15	35	11.75	11	10	0.6	0.6	0.053	15.8	14.4
30203	17	40	13.25	12	11	1	1	0.08	21.2	21.3
30204	20	47	15.25	14	12	1	1	0.126	28.2	30.6
30205	25	52	16.25	15	13	1	1	0.157	35.4	39.4
30206	30	62	17.25	16	14	1	1	0.231	45.4	50.5
30207	35	72	18.25	17	15	1.5	1.5	0.331	56.8	63.5
30208	40	80	19.75	18	16	1.5	1.5	0.422	63	74
30209	45	85	20.75	19	16	1.5	1.5	0.474	71.3	83.8
30210	50	90	21.75	20	17	1.5	1.5	0.53	73.3	92.1
30211	55	100	22.75	21	18	2	1.5	0.712	94.6	112.8
30212	60	110	23.75	22	19	2	1.5	0.904	103.3	130
30213	65	120	24.75	23	20	2	1.5	1.13	120.6	152.6
30214	70	125	26.25	24	21	2	1.5	1.261	138.3	173.7
30215	75	130	27.25	25	22	2	1.5	1.36	138.4	185.4
30216	80	140	28.25	26	22	2.5	2	1.675	167.7	212.9
30217	85	150	30.5	28	24	0.6	0.3	2.06	177.6	236.8
30302	15	42	14.25	13	11	1	1	0.095	23.9	21.6
30303	17	47	15.25	14	12	1	1	0.13	29.7	27.2
30304	20	52	16.25	15	13	1.5	1.5	0.17	34.7	33.2
30305	25	62	18.25	17	15	1.5	1.5	0.26	49.2	48.1
30306	30	72	20.75	19	16	1.5	1.5	0.387	61.7	63.1
30307	35	80	22.75	21	18	2	1.5	0.52	78.8	82.6
30308	40	90	25.25	23	20	2	1.5	0.745	95.2	107.5
30309	45	100	27.25	25	22	2	1.5	0.983	114.05	129.8
30310	50	110	29.25	27	23	2.5	2	1.256	130.1	157.1
30311	55	12	31.5	29	25	2.5	2	1.53	153.3	187.6
30312	60	130	33.5	31	26	3	2.5	1.99	171.4	210
30314	70	150	38	35	30	3	2.5	2.98	219	271.7
31306	30	72	20.75	19	14	1.5	1.5	0.392	52.5	60.3
31307	35	80	22.75	21	15	2	1.5	0.517	67.9	76.3
31308	40	90	25.25	23	17	2	1.5	0.727	81.4	96.4
31309	45	100	27.25	25	18	2	1.5	0.944	95.6	113.8
31313	65	140	35	33	23	3	2.5	2.37	165.7	202.6
32004X	20	42	15	15	12	0.6	0.6	0.098	26.3	30
32005X	25	47	15	15	11.5	0.6	0.6	0.112	28	34.1
32006X	30	55	17	17	13	1	1	0.174	38.9	48.9
32007X	35	62	18	18	14	1	1	0.22	42	56
32008X	40	68	19	19	14.5	1	1	0.27	47	67.3
32009X	45	75	20	20	15.5	1	1	0.34	59.6	80.1
32010X	50	80	20	20	15.5	1	1	0.368	63	88
32011X	55	90	23	23	17.5	1.5	1.5	0.552	79.7	115.6
32012X	60	95	23	23	17.5	1.5	1.5	0.578	83.8	121.5
32013X	65	100	23	23	17.5	1.5	1.5	0.62	82.8	127.3
32014X	70	110	25	25	19	1.5	1.5	0.841	101.7	158
32015X	75	115	25	25	19	1.5	1.5	0.872	103.1	160.2
32016X	80	125	29	29	22	1.5	1.5	1.252	141	220
32017X	85	130	29	29	22	1.5	1.5	1.318	139.8	220.3
32204	20	47	19.25	18	15	1	1	0.161	37	40.6
32205	25	52	19.25	18	16	1	1	0.184	43	48
32206	30	62	21.25	20	17	1	1	0.286	54.34	63.7
32207	35	72	24.25	23	19	1.5	1.5	0.446	74	89.5
32208	40	80	24.75	23	19	1.5	1.5	0.532	77.9	97.2
32209	45	85	24.75	23	19	1.5	1.5	0.58	84.1	103
32210	50	90	24.75	23	19	1.5	1.5	0.625	86.7	107.6
32211	55	100	26.75	25	21	2	1.5	0.854	112.7	141.5
32212	60	110	29.75	28	24	2	2	1.168	132.8	179.6
32213	65	120	32.75	31	27	2	1.5	1.55	160.9	221.7
32214	70	125	33.25	31	27	2	1.5	1.641	173.1	237.1
32216	80	140	35.25	33	28	2.5	2	2.132	198.1	279
32217	85	150	38.5	36	30	2.5	2	2.68	226.7	324
32219	95	170	45.5	43	37	3	2.5	4.24	302.5	448.4
32304	20	52	22.25	21	18	1.5	1.5	0.23	44.6	46.3
32305	25	62	25.25	24	20	1.5	1.5	0.369	64.6	68.8
32306	30	72	28.75	27	23	1.5	1.5	0.565	85.5	96.4
32307	35	80	32.75	31	25	2	1.5	0.764	103.6	118.3
32308	40	90	35.25	33	27	2	1.5	1.044	120.8	147.1
32309	45	100	38.25	36	30	2	1.5	1.403	152.2	189.3
32310	50	110	42.25	40	33	2.5	2	1.89	177.5	236.1
32311	55	120	45.5	43	35	2.5	2	2.363	212.7	271.3
32312	60	130	48.5	46	37	3	2.5	2.9	226.7	303
32313	65	140	51	48	39	3	2.5	3.514	269.3	349.8
32907	35	55	14	14	11.5	0.6	0.6	0.119	25.4	34.2
32908	40	62	15	15	12	0.6	0.6	0.158	31.6	46.1
32912	60	85	17	17	14	1	1	0.282	45.3	70.9
33005	25	47	17	17	14	0.6	0.6	0.131	32.5	42.5
33012	60	95	27	26	21	1.5	1.5	0.666	79.7	116.4
33013	65	100	27	27	21	1.5	1.5	0.74	100.9	163.6
33016	80	125	36	36	29.5	1.5	1.5	1.615	175.8	293.1
33019	95	145	39	39	32.5	2	2	2.26	231	389.9
33021	105	160	43	43	34	2.5	2	2.98	257	437
33108	40	75	26	26	20.5	1.5	1.5	0.484	78	98.4
33109	45	80	26	26	20.5	1.5	1.5	0.536	87.1	117.2
33110	50	85	26	26	20	1.5	1.5	0.595	89.5	124.7
33113	65	110	34	34	26.5	1.5	1.5	1.3	142.8	220.4
33116	80	130	37	37	29	2	1.5	1.864	180	292
33118	90	150	45	45	35	2.5	2	3.13	252.1	414.7
33205	25	52	22	22	18	1	1	0.215	47.1	55.8
33206	30	62	25	25	19.5	1	1	0.343	63.8	75.4
33207	35	72	28	28	22	1.5	1.5	0.51	82.6	101.7
33212	60	110	38	38	29	2	1.5	1.51	165.8	231.4
33213	65	120	41	41	32	2	1.5	1.99	202.2	281.6
320/22XF	22	44	15	15	11.5	1	1	0.102	26.1	30.3
320/28X	28	52	16	16	12	1	1	0.144	31.4	40.4
320/28XF	28	52	16	16	12	1.5	1.5	0.144	31.4	40.4
320/32XF	32	58	17	17	13	1	1	0.188	38.6	49.2
320/32XR	32	58	17	17	13	3.2	1	0.188	38.6	49.2
35KC802	35	80	29.15	28.5	22	2	2	0.7107	91.2	109
50KB801	50	80	22	20	17.5	3.5	1.5	0.395	61	89
50KB8301	50	83	24	20.5	19	4	1.3	0.46	68.6	90.5
T5FC030	30	72	24	23	16.5	0.5	1.5	0.449	56.3	61.3
T5GD035	35	89	38	38	27.5	1	1.5	1.203	112.2	148.3
T2CC050	50	83	20.5	20.5	15.5	3.5	1	0.396	68.6	87
T2CC050/T2CC050J	50	83	20.5	20.5	15.5	3.5	1	0.396	68.6	87
S-479505	75	140	34.25	32	28	0.5	2	2.255	208.9	282.5
T3DD080	80	130	35	34	28.5	3.6	2.5	1.707	160	250.2
T4DC090	90	145	35	34	27	6.5	3.2	2.085	180.5	293.1
32004XR	20	42	15	15	12	2	0.6	0.098	26.3	30
32004XRZ	20	42	15	15	12	2	1	0.098	26.3	30
XAA32004X/YAA32004	20	42	15	15	12	2	1	0.098	26.3	30
32005XR	25	47	15	15	11.5	SP	0.6	0.112	28	34.1
32005XRZ	25	47	15	15	11.5	SP	1	0.112	28	34.1
32005XR/26	26	47	15	15	11.5	SP	0.6	0.112	28	34.1
xAA32005X/YAA32005X	25	47	15	15	11.5	3.3	1	0.112	28	34.1
32007X30/32007X	30	62	18	18	14	1.5	1.5	0.25	42	56
32007X34/32007XF	34	62	18	18	14	1.5	1.5	0.231	42	56
32007XRZ	35	62	18	18	14	SP	1.5	0.221	42	56
NP316592/32007X	35	62	18	18	14	3	1	0.221	42	56
32008X1WC	40	72	19	19	14.5	1	1	0.328	52	73
XAA32008X	40	68	19	19	14.5	3.5	1	0.27	47	67.3
JXC18437CA/32008XZ	41	68	19	21	14.5	2	1	0.27	47	67.3
XAA32009X/32009X	45	75	20	20	15.5	3	1	0.339	59.6	80.1
32010XR	50	80	20	20	15.5	3	1	0.368	63	88
XAA32010X/Y32010XZ	50	80	20	20	15.5	2.3	1	0.368	63	88
AB-32010X/32010X	50	80	20	20	15.5	3	1	0.368	60	88
32010XZ/Y32010XZ	50	80	20	20	15.5	1	1	0.368	63	88
JXC25678CAIY32011XZ	55	90	23	23	17.5	3	1.5	0.55	79.7	115.6
515979/30206A	30	62	17.25	16	14	SP	1	0.226	45.4	50.5
30207/80F	35	80	18.25	17	15	1.5	1.5	0.443	56.8	63.5
30207/37F	37	72	18.25	17	15	2	2	0.315	56.8	63.5
L30208	40	85	7.75	18	16	1.5	2	0.432	63	74
L30210	50	95	8.75	20	17	1.5	2	0.539	73.3	92.1
303/28F	28	68	19.75	18	16	1.5	1.5	0.331	53.1	52.4
30304C	20	52	16.25	16	12	1.5	1.5	0.166	33.1	31.6
30306C	30	72	20.75	19	14	1.5	1.5	0.378	57.7	56.7
H30306C	30	72	20.65	19	16	0.3	1.5	0.388	57.7	56.7
30309X2B	45	100	31.85	29	20.5	2.5	2.5	1.036	102.2	112.5
32204R	20	47	19.25	18	15	0.3	0.3	0.161	37	40.6
32205B	25	52	19.25	18	15	1	1	0.195	39	47.8
32306C	30	72	28.75	27	23	2	2	0.589	70.7	89.9
32306-KL	30	72	28.75	27	23	1.5	1.5	0.565	85.5	96.4
32307BC	35	80	32.75	31	25	2	1.5	0.808	96.4	122.4
32308F/32308	38	90	35.25	33	27	2.5	2	1.075	120.8	147.1
32308B	40	90	35.25	33	27	2	1.5	1.124	110.2	141.5
32308C	40	90	35.25	33	26	2	1.5	1.069	110.2	141.5
32308-KL	40	90	35.25	33	27	2	1.5	1.044	120.8	147.1
XAA33108/Y33108Z	40	75	26	26	20.5	3.5	1.5	0.484	78	98.4
33113X2	65	110	30.5	30	24	3	3	1.114	125.7	184.8

Product Catalog

Related Products

Call Us

Email Us

Address

Product Category

Apply For Agent

Newsletter

Availability:

Quantity:



Inquiry Contact Now

OKRE Bearing No	Boundary Dimensions							Weight	Dynamic	Static
	Boundary Dimensions							Weight	Dynamic	Static
	d	D	T	B	C	R	r	w	Cr	Cor
	mm					min	min	kg	KN	KN
CBK-170B	15	35	11	10.75	8.5	1	1.3	0.05	16.3	15
CBK-257	15	42	12.9	13.5	10	2	1.5	0.096	22.5	23.5
05066/05185	16.993	47	14.381	14.381	11.112	1.5	1.3	0.127	25.9	26.6
LM11749/LM11710	17.463	39.878	13.843	14.605	10.668	1.3	1.3	0.085	22.3	22.8
A6075/A6157	19.05	39.992	12.014	11.153	9.525	1	1.3	0.066	12.9	12.9
4A-6	19.05	44.45	12.7	11.908	9.525	1.5	1.5	0.09	20.2	20.5
LM11949/LM11910	19.05	45.237	15.494	16.637	12.065	1.3	1.3	0.121	29	30.3
LM11949X/LM11910X	19.05	45.237	15.494	16.637	12.065	SP	SP	0.121	29	30.3
LM11949RS/LM11910	19.05	46	15.494	16.637	12.065	1.3	1.3	0.127	29	30.3
09067/09195	19.05	49.225	18.034	19.05	14.288	1.3	1.3	0.174	38	38.2
09067/09196	19.05	49.225	21.209	19.05	17.462	1.3	1.5	0.194	38	38.2
09074/09194	19.05	49.225	23.02	21.539	17.462	1.5	3.5	0.198	38	38.2
09074/09195	19.05	49.225	19.845	21.539	14.288	1.5	1.3	0.183	38	38.2
09074/09196	19.05	49.225	23.02	21.539	17.462	1.5	1.5	0.202	38	38.2
CBK-173	20	43	13.2	12	11	3	1.5	0.086	22	23
09081/09195	20.625	49.225	19.845	21.539	14.288	1.5	1.3	0.174	38	38.2
09081/09196	20.625	49.225	23.02	21.539	17.462	1.5	1.5	0.193	38	38.2
LM12748/LM12710	21.43	45.237	15.494	16.638	12.065	1.3	1.3	0.121	27.8	33.4
M12649/M12610	21.43	50.005	17.526	18.288	113.97	1.3	1.3	0.17	39.8	40.6
JL22349/JL22310-P	22	41	14.4	14.4	11.4	1	1	0.082	26.3	30
LM12749/LM12710	22	45.237	15.494	16.637	12.065	1.3	1.3	0.117	27.8	33.4
LM12749/LM12711	22	46	15.494	16.637	12.065	1.3	1.3	0.12	27.8	33.4
M12648/M12610	22.225	50.005	17.526	18.288	13.97	1.3	1.3	0.164	39.8	40.6
07087/07210X	22.225	50.8	15.011	14.26	12.7	1.3	1.5	0.147	26.78	28.93
07087X/07210X	22.225	50.8	15.011	14.26	12.7	1.5	1.5	0.147	26.78	28.93
07087/07204	22.225	51.994	15.011	14.26	12.7	1.3	1.3	0.157	26.78	28.93
1380/1328	22.225	52.388	19.368	20.168	14.288	1.5	1.5	0.192	40	41
1755/1729	22.225	56.896	19.368	19.837	15.875	1.3	1.3	0.249	40.5	43.5
CBK-258	23	52	15	14.26	12.7	3.2	2	0.151	28.1	31
1779/1729X	23.812	56.896	19.368	19.837	15.875	0.8	1.5	0.205	40.5	43.5
07097/07204	25	51.994	15.011	14.26	12.7	1.5	1.3	0.145	26.78	28.93
07100/07196	25.4	50.005	13.495	14.26	9.525	1	1	0.117	26.78	28.93
07100S/07196	25.4	50.005	13.495	14.26	9.525	1.5	1	0.117	26.78	28.93
L44643/L44610	25.4	50.292	14.224	14.732	10.668	1.3	1.3	0.128	26.7	32.5
144643RS/L44610	25.4	50.292	14.224	14.732	10.668	1.3	1.3	0.134	26.7	32.5
07100S/07210X	25.4	50.8	15.011	14.26	12.7	1.5	1.5	0.133	26.78	28.93

OKRE Bearing No	Boundary Dimensions							Weight	Dynamic	Static
	Boundary Dimensions							Weight	Dynamic	Static
	d	D	T	B	C	R	r	w	Cr	Cor
	mm					min	min	kg	KN	KN
CBK-170B	15	35	11	10.75	8.5	1	1.3	0.05	16.3	15
CBK-257	15	42	12.9	13.5	10	2	1.5	0.096	22.5	23.5
05066/05185	16.993	47	14.381	14.381	11.112	1.5	1.3	0.127	25.9	26.6
LM11749/LM11710	17.463	39.878	13.843	14.605	10.668	1.3	1.3	0.085	22.3	22.8
A6075/A6157	19.05	39.992	12.014	11.153	9.525	1	1.3	0.066	12.9	12.9
4A-6	19.05	44.45	12.7	11.908	9.525	1.5	1.5	0.09	20.2	20.5
LM11949/LM11910	19.05	45.237	15.494	16.637	12.065	1.3	1.3	0.121	29	30.3
LM11949X/LM11910X	19.05	45.237	15.494	16.637	12.065	SP	SP	0.121	29	30.3
LM11949RS/LM11910	19.05	46	15.494	16.637	12.065	1.3	1.3	0.127	29	30.3
09067/09195	19.05	49.225	18.034	19.05	14.288	1.3	1.3	0.174	38	38.2
09067/09196	19.05	49.225	21.209	19.05	17.462	1.3	1.5	0.194	38	38.2
09074/09194	19.05	49.225	23.02	21.539	17.462	1.5	3.5	0.198	38	38.2
09074/09195	19.05	49.225	19.845	21.539	14.288	1.5	1.3	0.183	38	38.2
09074/09196	19.05	49.225	23.02	21.539	17.462	1.5	1.5	0.202	38	38.2
CBK-173	20	43	13.2	12	11	3	1.5	0.086	22	23
09081/09195	20.625	49.225	19.845	21.539	14.288	1.5	1.3	0.174	38	38.2
09081/09196	20.625	49.225	23.02	21.539	17.462	1.5	1.5	0.193	38	38.2
LM12748/LM12710	21.43	45.237	15.494	16.638	12.065	1.3	1.3	0.121	27.8	33.4
M12649/M12610	21.43	50.005	17.526	18.288	113.97	1.3	1.3	0.17	39.8	40.6
JL22349/JL22310-P	22	41	14.4	14.4	11.4	1	1	0.082	26.3	30
LM12749/LM12710	22	45.237	15.494	16.637	12.065	1.3	1.3	0.117	27.8	33.4
LM12749/LM12711	22	46	15.494	16.637	12.065	1.3	1.3	0.12	27.8	33.4
M12648/M12610	22.225	50.005	17.526	18.288	13.97	1.3	1.3	0.164	39.8	40.6
07087/07210X	22.225	50.8	15.011	14.26	12.7	1.3	1.5	0.147	26.78	28.93
07087X/07210X	22.225	50.8	15.011	14.26	12.7	1.5	1.5	0.147	26.78	28.93
07087/07204	22.225	51.994	15.011	14.26	12.7	1.3	1.3	0.157	26.78	28.93
1380/1328	22.225	52.388	19.368	20.168	14.288	1.5	1.5	0.192	40	41
1755/1729	22.225	56.896	19.368	19.837	15.875	1.3	1.3	0.249	40.5	43.5
CBK-258	23	52	15	14.26	12.7	3.2	2	0.151	28.1	31
1779/1729X	23.812	56.896	19.368	19.837	15.875	0.8	1.5	0.205	40.5	43.5
07097/07204	25	51.994	15.011	14.26	12.7	1.5	1.3	0.145	26.78	28.93
07100/07196	25.4	50.005	13.495	14.26	9.525	1	1	0.117	26.78	28.93
07100S/07196	25.4	50.005	13.495	14.26	9.525	1.5	1	0.117	26.78	28.93
L44643/L44610	25.4	50.292	14.224	14.732	10.668	1.3	1.3	0.128	26.7	32.5
144643RS/L44610	25.4	50.292	14.224	14.732	10.668	1.3	1.3	0.134	26.7	32.5
07100S/07210X	25.4	50.8	15.011	14.26	12.7	1.5	1.5	0.133	26.78	28.93
