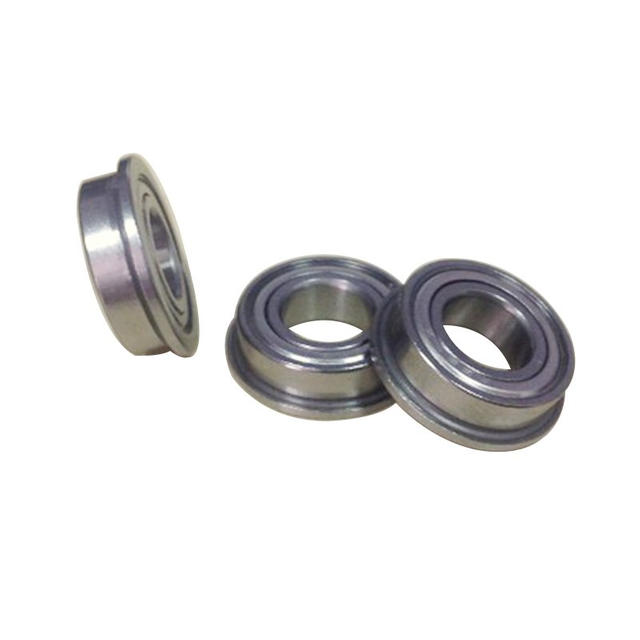

Inch Miniature Flanged Ball Bearings

You are here: Home » Products » Deep Groove Ball Bearing » Inch Miniature Flanged Ball Bearings

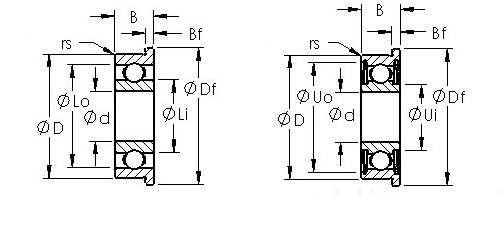

Product Number	Bore Dia(d)	Outer Dia(D)	Width(B)	Flange Dia (Df)	Flange Width (Bf)	Dynamic Load Rating	Static Load Rating
Product Number	Bore Dia(d)	Outer Dia(D)	Width(B)	Flange Dia (Df)	Flange Width (Bf)	(Cr)/N	(Cor)/N
FR0	0.0469 inch	0.1562 inch	0.0625 inch	0.2030 inch	0.013 inch	21	6
FR0zz	0.0469 inch	0.1562 inch	0.0937 inch	0.2030 inch	0.031 inch	21	6
FR1	0.055 inch	0.1875 inch	0.0781 inch	0.2340 inch	0.023 inch	44	12
FR1zz	0.055 inch	0.1875 inch	0.1094 inch	0.2340 inch	0.031 inch	44	12
FR1-4	0.0781 inch	0.2500 inch	0.0937 inch	0.2960 inch	0.023 inch	54	17
FR1-4 2RS	0.0781 inch	0.2500 inch	0.1406 inch	0.2960 inch	0.031 inch	54	17
FR1-4zz	0.0781 inch	0.2500 inch	0.1406 inch	0.2960 inch	0.031 inch	54	17
FR1-5	0.0937 inch	0.3125 inch	0.1094 inch	0.3590 inch	0.023 inch	106	32
FR1-5 2RS	0.0937 inch	0.3125 inch	0.1406 inch	0.3590 inch	0.031 inch	106	32
FR1-5zz	0.0937 inch	0.3125 inch	0.1406 inch	0.3590 inch	0.031 inch	106	32
FR133	0.0937 inch	0.1875 inch	0.0625 inch	0.2340 inch	0.018 inch	36	11
FR133 2RS	0.0937 inch	0.1875 inch	0.0937 inch	0.2340 inch	0.018 inch	28	10
FR133zz	0.0937 inch	0.1875 inch	0.0937 inch	0.2340 inch	0.031 inch	28	10
FR144	0.125 inch	0.2500 inch	0.0937 inch	0.2960 inch	0.023 inch	54	17
FR144 2RS	0.125 inch	0.2500 inch	0.1094 inch	0.2960 inch	0.031 inch	54	17
FR144zz	0.125 inch	0.2500 inch	0.1094 inch	0.2960 inch	0.031 inch	54	17
FR2	0.125 inch	0.3750 inch	0.1562 inch	0.4400 inch	0.030 inch	121	39
FR2 2RS	0.125 inch	0.3750 inch	0.1562 inch	0.4400 inch	0.030 inch	121	39
FR2zz	0.125 inch	0.3750 inch	0.1562 inch	0.4400 inch	0.030 inch	121	39
FR2-5	0.125 inch	0.3125 inch	0.1094 inch	0.3590 inch	0.023 inch	107	32
FR2-5 2RS	0.125 inch	0.3125 inch	0.1406 inch	0.3590 inch	0.031 inch	107	32
FR2-5zz	0.125 inch	0.3125 inch	0.1406 inch	0.3590 inch	0.031 inch	107	32
FR2-6	0.125 inch	0.3750 inch	0.1094 inch	0.4220 inch	0.023 inch	122	41
FR2-6 2RS	0.125 inch	0.3750 inch	0.1406 inch	0.4220 inch	0.031 inch	122	41
FR2-6zz	0.125 inch	0.3750 inch	0.1406 inch	0.4220 inch	0.031 inch	122	41
FR155	0.1562 inch	0.3125 inch	0.1094 inch	0.3590 inch	0.023 inch	69	27
FR155 2RS	0.1562 inch	0.3125 inch	0.1250 inch	0.3590 inch	0.023 inch	69	27
FR155zz	0.1562 inch	0.3125 inch	0.1250 inch	0.3590 inch	0.036 inch	69	27
FR156	0.1875 inch	0.3125 inch	0.1094 inch	0.3590 inch	0.023 inch	69	27
FR156 2RS	0.1875 inch	0.3125 inch	0.1250 inch	0.3590 inch	0.036 inch	69	27
FR156zz	0.1875 inch	0.3125 inch	0.1250 inch	0.3590 inch	0.036 inch	69	27
FR166	0.1875 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.023 inch	136	49
FR166 2RS	0.1875 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.031 inch	136	49
FR166zz	0.1875 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.031 inch	136	49
FR3	0.1875 inch	0.5000 inch	0.1960 inch	0.5650 inch	0.042 inch	249	88
FR3 2RS	0.1875 inch	0.5000 inch	0.1960 inch	0.5650 inch	0.042 inch	249	88
FR3zz	0.1875 inch	0.5000 inch	0.1960 inch	0.5650 inch	0.042 inch	249	88
FR168	0.25 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.023 inch	71	31
FR168 2RS	0.25 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.036 inch	71	31
FR168zz	0.25 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.036 inch	71	31
FR188	0.25 inch	0.5000 inch	0.1250 inch	0.5470 inch	0.023 inch	344	80
FR188 2RS	0.25 inch	0.5000 inch	0.1875 inch	0.5470 inch	0.045 inch	344	80
FR188zz	0.25 inch	0.5000 inch	0.1875 inch	0.5470 inch	0.045 inch	344	80
FR4	0.25 inch	0.6250 inch	0.1960 inch	0.6900 inch	0.042 inch	283	112
FR4 2RS	0.25 inch	0.6250 inch	0.1960 inch	0.6900 inch	0.042 inch	283	112
FR4zz	0.25 inch	0.6250 inch	0.1960 inch	0.6900 inch	0.042 inch	283	112
FR1810	0.3125 inch	0.5000 inch	0.1562 inch	0.5470 inch	0.031 inch	104	50
FR1810 2RS	0.3125 inch	0.5000 inch	0.1562 inch	0.5470 inch	0.013 inch	104	50
FR1810zz	0.3125 inch	0.5000 inch	0.1562 inch	0.5470 inch	0.013 inch	104	50
FR6	0.375 inch	0.8750 inch	0.2188 inch	0.9650 inch	0.062 inch	637	256
FR6 2RS	0.375 inch	0.8750 inch	0.2812 inch	0.9650 inch	0.062 inch	637	256
FR6zz	0.375 inch	0.8750 inch	0.2812 inch	0.9650 inch	0.062 inch	637	256

Product Number	Bore Dia(d)	Outer Dia(D)	Width(B)	Flange Dia (Df)	Flange Width (Bf)	Dynamic Load Rating	Static Load Rating
Product Number	Bore Dia(d)	Outer Dia(D)	Width(B)	Flange Dia (Df)	Flange Width (Bf)	(Cr)/N	(Cor)/N
FR0	0.0469 inch	0.1562 inch	0.0625 inch	0.2030 inch	0.013 inch	21	6
FR0zz	0.0469 inch	0.1562 inch	0.0937 inch	0.2030 inch	0.031 inch	21	6
FR1	0.055 inch	0.1875 inch	0.0781 inch	0.2340 inch	0.023 inch	44	12
FR1zz	0.055 inch	0.1875 inch	0.1094 inch	0.2340 inch	0.031 inch	44	12
FR1-4	0.0781 inch	0.2500 inch	0.0937 inch	0.2960 inch	0.023 inch	54	17
FR1-4 2RS	0.0781 inch	0.2500 inch	0.1406 inch	0.2960 inch	0.031 inch	54	17
FR1-4zz	0.0781 inch	0.2500 inch	0.1406 inch	0.2960 inch	0.031 inch	54	17
FR1-5	0.0937 inch	0.3125 inch	0.1094 inch	0.3590 inch	0.023 inch	106	32
FR1-5 2RS	0.0937 inch	0.3125 inch	0.1406 inch	0.3590 inch	0.031 inch	106	32
FR1-5zz	0.0937 inch	0.3125 inch	0.1406 inch	0.3590 inch	0.031 inch	106	32
FR133	0.0937 inch	0.1875 inch	0.0625 inch	0.2340 inch	0.018 inch	36	11
FR133 2RS	0.0937 inch	0.1875 inch	0.0937 inch	0.2340 inch	0.018 inch	28	10
FR133zz	0.0937 inch	0.1875 inch	0.0937 inch	0.2340 inch	0.031 inch	28	10
FR144	0.125 inch	0.2500 inch	0.0937 inch	0.2960 inch	0.023 inch	54	17
FR144 2RS	0.125 inch	0.2500 inch	0.1094 inch	0.2960 inch	0.031 inch	54	17
FR144zz	0.125 inch	0.2500 inch	0.1094 inch	0.2960 inch	0.031 inch	54	17
FR2	0.125 inch	0.3750 inch	0.1562 inch	0.4400 inch	0.030 inch	121	39
FR2 2RS	0.125 inch	0.3750 inch	0.1562 inch	0.4400 inch	0.030 inch	121	39
FR2zz	0.125 inch	0.3750 inch	0.1562 inch	0.4400 inch	0.030 inch	121	39
FR2-5	0.125 inch	0.3125 inch	0.1094 inch	0.3590 inch	0.023 inch	107	32
FR2-5 2RS	0.125 inch	0.3125 inch	0.1406 inch	0.3590 inch	0.031 inch	107	32
FR2-5zz	0.125 inch	0.3125 inch	0.1406 inch	0.3590 inch	0.031 inch	107	32
FR2-6	0.125 inch	0.3750 inch	0.1094 inch	0.4220 inch	0.023 inch	122	41
FR2-6 2RS	0.125 inch	0.3750 inch	0.1406 inch	0.4220 inch	0.031 inch	122	41
FR2-6zz	0.125 inch	0.3750 inch	0.1406 inch	0.4220 inch	0.031 inch	122	41
FR155	0.1562 inch	0.3125 inch	0.1094 inch	0.3590 inch	0.023 inch	69	27
FR155 2RS	0.1562 inch	0.3125 inch	0.1250 inch	0.3590 inch	0.023 inch	69	27
FR155zz	0.1562 inch	0.3125 inch	0.1250 inch	0.3590 inch	0.036 inch	69	27
FR156	0.1875 inch	0.3125 inch	0.1094 inch	0.3590 inch	0.023 inch	69	27
FR156 2RS	0.1875 inch	0.3125 inch	0.1250 inch	0.3590 inch	0.036 inch	69	27
FR156zz	0.1875 inch	0.3125 inch	0.1250 inch	0.3590 inch	0.036 inch	69	27
FR166	0.1875 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.023 inch	136	49
FR166 2RS	0.1875 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.031 inch	136	49
FR166zz	0.1875 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.031 inch	136	49
FR3	0.1875 inch	0.5000 inch	0.1960 inch	0.5650 inch	0.042 inch	249	88
FR3 2RS	0.1875 inch	0.5000 inch	0.1960 inch	0.5650 inch	0.042 inch	249	88
FR3zz	0.1875 inch	0.5000 inch	0.1960 inch	0.5650 inch	0.042 inch	249	88
FR168	0.25 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.023 inch	71	31
FR168 2RS	0.25 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.036 inch	71	31
FR168zz	0.25 inch	0.3750 inch	0.1250 inch	0.4220 inch	0.036 inch	71	31
FR188	0.25 inch	0.5000 inch	0.1250 inch	0.5470 inch	0.023 inch	344	80
FR188 2RS	0.25 inch	0.5000 inch	0.1875 inch	0.5470 inch	0.045 inch	344	80
FR188zz	0.25 inch	0.5000 inch	0.1875 inch	0.5470 inch	0.045 inch	344	80
FR4	0.25 inch	0.6250 inch	0.1960 inch	0.6900 inch	0.042 inch	283	112
FR4 2RS	0.25 inch	0.6250 inch	0.1960 inch	0.6900 inch	0.042 inch	283	112
FR4zz	0.25 inch	0.6250 inch	0.1960 inch	0.6900 inch	0.042 inch	283	112
FR1810	0.3125 inch	0.5000 inch	0.1562 inch	0.5470 inch	0.031 inch	104	50
FR1810 2RS	0.3125 inch	0.5000 inch	0.1562 inch	0.5470 inch	0.013 inch	104	50
FR1810zz	0.3125 inch	0.5000 inch	0.1562 inch	0.5470 inch	0.013 inch	104	50
FR6	0.375 inch	0.8750 inch	0.2188 inch	0.9650 inch	0.062 inch	637	256
FR6 2RS	0.375 inch	0.8750 inch	0.2812 inch	0.9650 inch	0.062 inch	637	256
FR6zz	0.375 inch	0.8750 inch	0.2812 inch	0.9650 inch	0.062 inch	637	256
